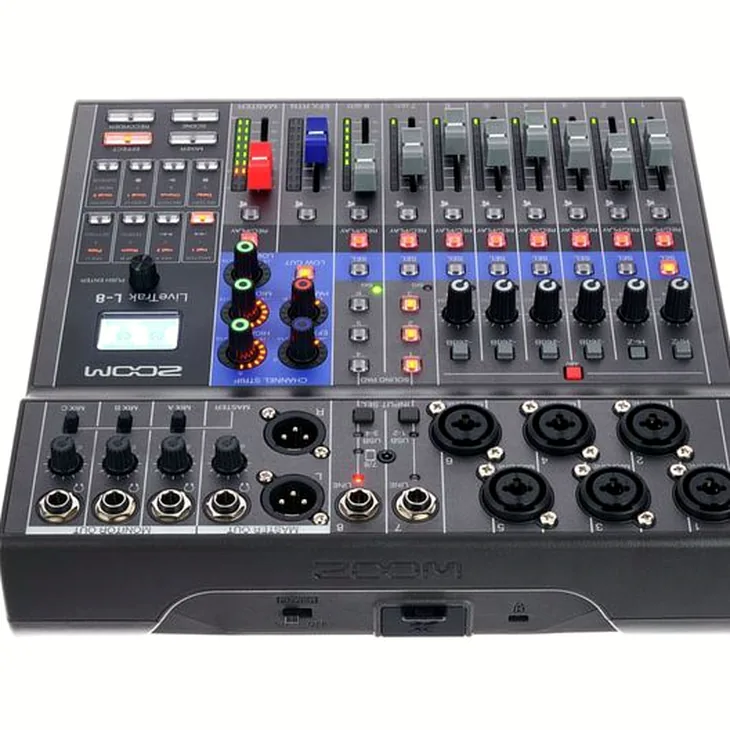

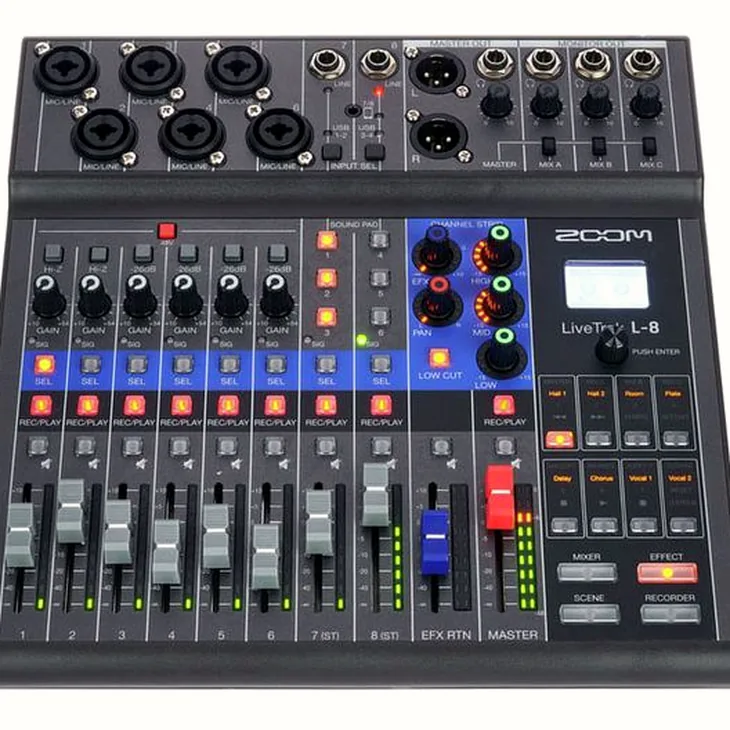

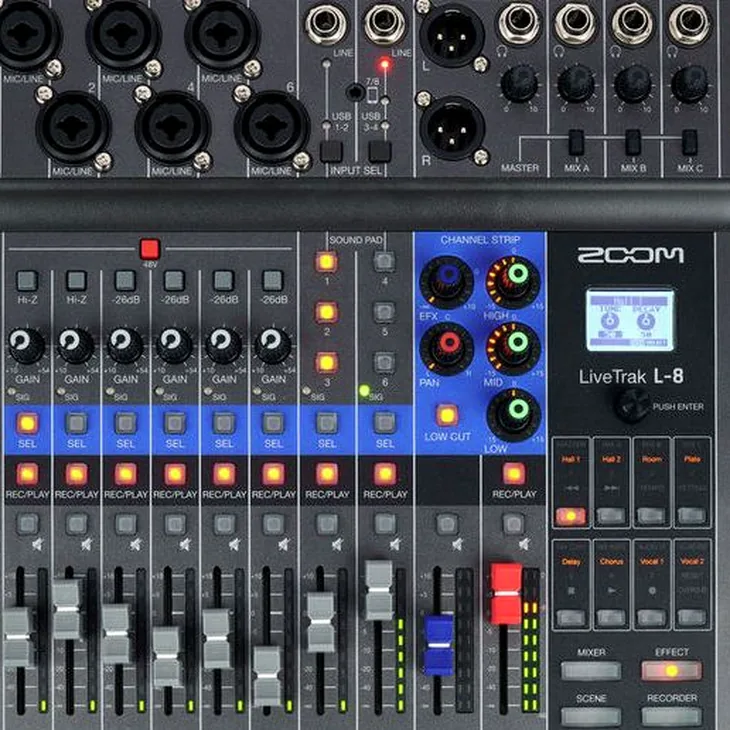

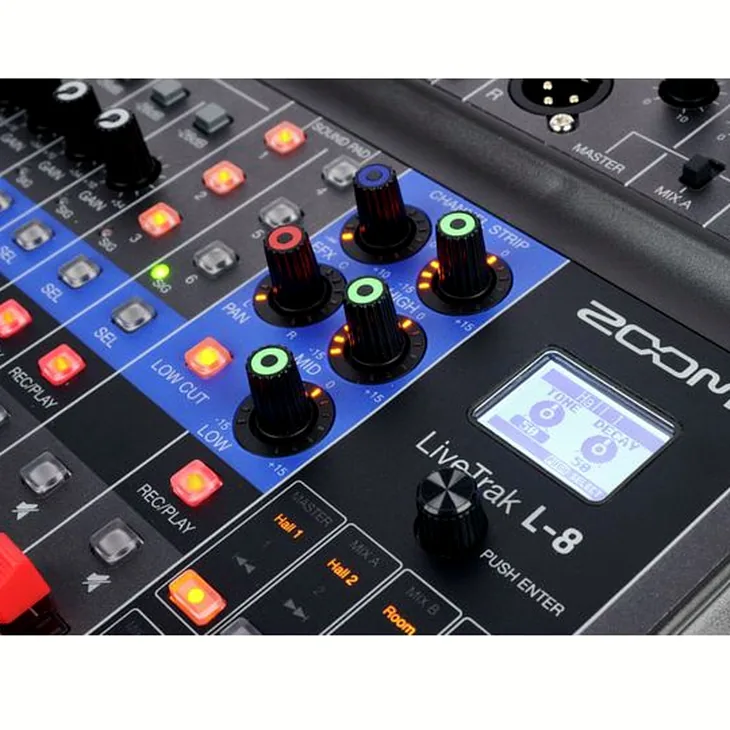

Zoom LiveTrak L-8
Zoom audio interface specifications
- 8-Channel mixer
- Channels 1-2 for microphone, line and instrument signals – XLR / TRS combo socket
- Channels 3-6 for microphone and line signals – XLR / TRS combo socket
- Channels 7-8 for line signals – 6.3 mm jack
- USB stereo playback and telephone playback – 3.5 mm TRRS
- Mix-minus function for preventing audio feedback from dial-in guests
- Per channel: 3-Band EQ, low-cut filter, panorama control, effects loop
- 48 V Phantom power switchable
- Effects section with 8 different programs
- 6 Assignable sound pads for jingles, intros, outros and sound effects
- 4 Headphone outputs (6.3 mm TRS) for main mix and 3 monitor mixes
- Balanced stereo output (XLR)
- 7 Scene memory slots for mixes
- Battery operation possible (4x AA Mignon, not included in the delivery)
- Record up to 12 tracks on SD card or computer (USB) with a maximum of 24-bit / 96 kHz
- Simultaneously recording on SD card and computer is possible with a maximum of 24-bit / 48 kHz
- Integrated USB audio interface with 12 inputs and 4 outputs
- USB 2.0
- System requirements: Windows 7 or later, macOS 10.12 or later
- Dimensions (W x D x H): 282 x 268 x 74 mm
- Weight: 1.56 kg
- Includes 3.5 mm TRRS cable, USB cable and AD-17 power adapter
- Suitable case: Art.502745 (not included in the delivery)
- Suitable case: Art.498148 (not included in the delivery)
Images
Additional Information
Customer Review Summary
The Zoom LiveTrak L-8 is a compact and versatile device that functions as both a live mixer and an audio interface. Its build quality feels robust despite being primarily plastic, and the controls are intuitive, making it easy to use for various applications, from live performances to home recording.
One of the standout features is its ability to operate on battery power, which is perfect for outdoor events without access to mains electricity. It offers multiple channels for mic and instrument inputs, and includes four headphone outputs, each capable of individual mixes, enhancing its usability in band settings.
The sound quality is commendable, with clean preamps that manage to keep noise levels low, even at higher gain settings. The L-8 also allows for multi-track recording directly onto an SD card, which is a significant advantage for those looking to capture rehearsals or gigs effortlessly.
However, there are some limitations to keep in mind. The effects processing is somewhat restrictive, as only one global effect can be used at a time across all channels, which may not meet the needs of users looking for more complex sound manipulations. Additionally, the placement of the USB port on the underside of the device can complicate connectivity during use.
While the L-8 does not include features such as a compressor for individual channels, it remains a reliable tool for podcasters, musicians, and audio engineers seeking a portable solution. Its ease of use and flexibility make it a solid choice for both beginners and experienced users, although those requiring higher-end specifications may want to explore more advanced options.
In summary, the Zoom LiveTrak L-8 is a highly functional mixer and recorder that balances portability and performance, making it an excellent addition to any mobile audio setup.
