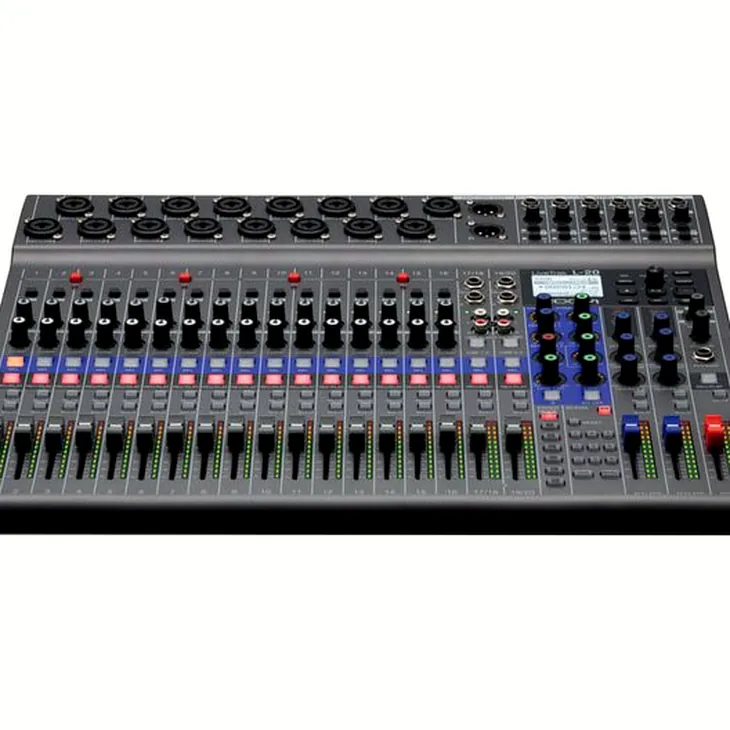

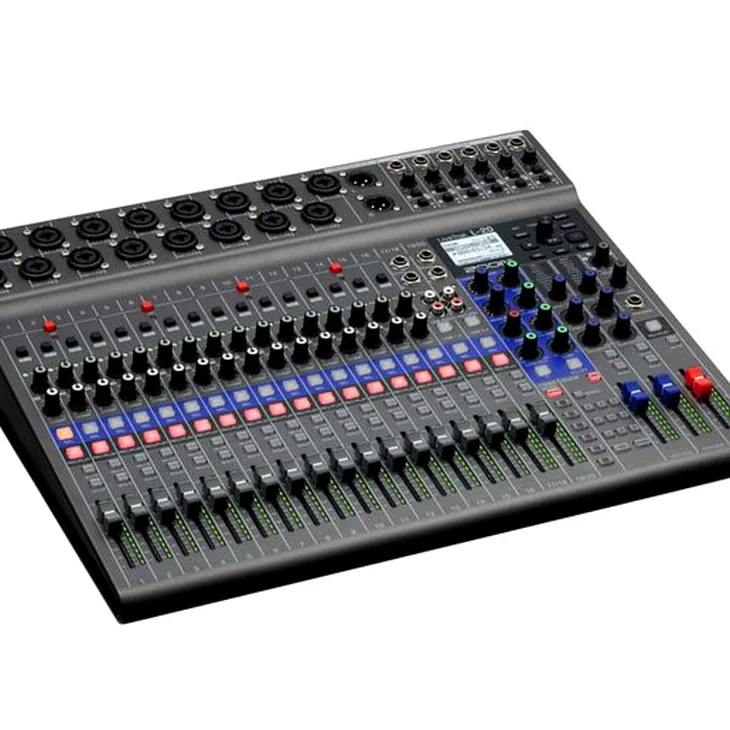

Zoom LiveTrak L-20
Zoom audio interface technical breakdown
- 20 Discrete channels
- 16 Mono plus 2 stereo channels with XLR and 1/4″ phone jacks
- Simultaneous recording of 22 tracks
- Playback of 20 tracks
- USB audio interface with 22 inputs and 4 outputs
- Audio recording up to 24-bit / 96 kHz on SD storage media
- 48 V phantom power
- Hi-Z Connectors (channels 1-2)
- 26 dB Pad (channels 3 to 16)
- Compressor per channel with one knob (channels 1 to 16)
- Solo and mute buttons for each channel
- Low cut per channel between 40 – 600 Hz variably adjustable
- Sum outputs and six configurable monitor outputs
- Monitor outputs can be configured as headphone output or normal line-level output
- Additional separate headphone output
- Memory function for up to nine mixer scenes
- 20 Internal, editable chorus, delay and reverb effects
- Two effect buses
- Built-in talkback microphone
- Pre-record function
- Class-compliant operation (for iOS compatibility)
- Automatic start and stop recording possible
- Import and export of projects via the USB 2.0 interface
- Compatible functions for the ZOOM FS01 footswitch
- Dimensions (W x D x H): 445 x 388.4 x 82.6 mm
- Weight: 3.71 kg
- Includes power supply (AD-19), USB 2.0 cable and quick start guide
- Suitable protective cover: Article no. 514006 (not included)
- Optional case 514831 (not included)
Images
Additional Information
Customer Review Summary
Zoom LiveTrak L-20 Review
The Zoom LiveTrak L-20 is an exceptionally versatile and user-friendly mixer, perfect for bands and live performances. With 20 channels—16 mono and 2 stereo—it accommodates various instruments and vocals, making it ideal for complex setups. The ability to record directly onto an SD card simplifies the process, allowing for quick playback and review of rehearsals or gigs.
One of its standout features is the six individually configurable headphone/monitor mixes, which ensures that each musician can hear their desired mix without affecting others. The sound quality is impressive, with plenty of headroom in the preamps, and the onboard effects are suitable for live mixing, enhancing the overall performance.
While it is lightweight and portable, the build quality is somewhat plasticky, which may raise concerns about durability in more rugged environments. However, it remains robust enough for typical band usage. The interface is intuitive, although some users noted that additional features could benefit from improved clarity, particularly in navigating the various functions and settings.
Recording can be done simultaneously while mixing live, and the option to use it as an audio interface with a DAW adds to its flexibility. The ease of recalling saved settings for different performances is a fantastic time-saver, allowing for quick adjustments between shows.
In summary, the Zoom LiveTrak L-20 is a powerful tool that combines the functionality of a mixer, recorder, and audio interface in one compact unit. It offers excellent value for money, especially for bands looking to enhance their rehearsal and performance setup. Highly recommended for both beginners and seasoned musicians alike.
